Medium Duty Flatbed Tow Truck , 5 Tons 24 Hour Tow Truck High Performance

Product Categories
HUBEI CHENGLI SPECIAL AUTOMOBILE CO., LTD
Contact Now

Medium Duty Flatbed Tow Truck , 5 Tons 24 Hour Tow Truck High Performance

Brand Name : CLW

Model Number : CLW5082

Certification : CCC,BV,SGS,ISO

Place of Origin : Suizhou,China

MOQ : 1 Unit

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units/month

Delivery Time : 35 days after receiving deposit

Packaging Details : Naked,Waxed,Bulk Ship,Ro-Ro

Chassis Brand : DONGFENG,ISUZU,FAW,HOWO,JAC,JMC

Towing capacity : 3ton,3t,4ton,4t,5t,5ton,3tons,4tons,5tons

Color : White,yellow,Blue as customized

Steering : LHD,RHD,right hand drive,left hand drive

Engine : 115hp,130hp

Wrecker Type : One-towing-two,one-towing-one

Contact Now

Flatbed Tow Truck Medium Duty 5tons High Performance 24 hours 5t Towing Vehicle

Product Description

1) Purpose of Flatbed Tow Truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of Flatbed Tow Truck:Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of Flatbed Tow Truck:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of Flatbed Tow Truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

Specification of Flatbed Tow Truck Medium Duty 5tons High Performance 24 hours 5t Towing Vehicle

Item No. Parameters
Overall Dimension 5995x2300x2450 mm
Driving ModelL LHD or RHD
Cabin 2~3 persons
Gross Vehicle Weight 4495 kg
Curb Weight 3860 kg
Loading Weight 505 Kg
Wheel Base 3360 mm
Front/rear Tread 1210/2470 mm
Approach/Departure Angle 24/12 degree
Front Axle 3310 kg
Rear Axle 4965 kg
Engine Yunnei engine
Engine horsepower 115 HP EURO III
Displacement 3856mL (Diesel)
Max Driving Speed 90 km/h
Tire 7.00-16( 7 pieces)
Loading Plate
Body Material Q235A carbon steel
Lifting Weight 3000kg
Loading Plate Dimensions 4450*2200mm
Loading Plate Glide Range 2700mm
Min. Slope Anglo 8 degree
Steel Rope Length 21m
Winch Speed 5m/min
Towing Weight 4000kg
Wheel Lift Max. Length 1640mm
Wheel Lift Extension 1340mm
Tool Box no. 1
Auxiliary wheel no. 2
“L” bracket no. 1
LOGO Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

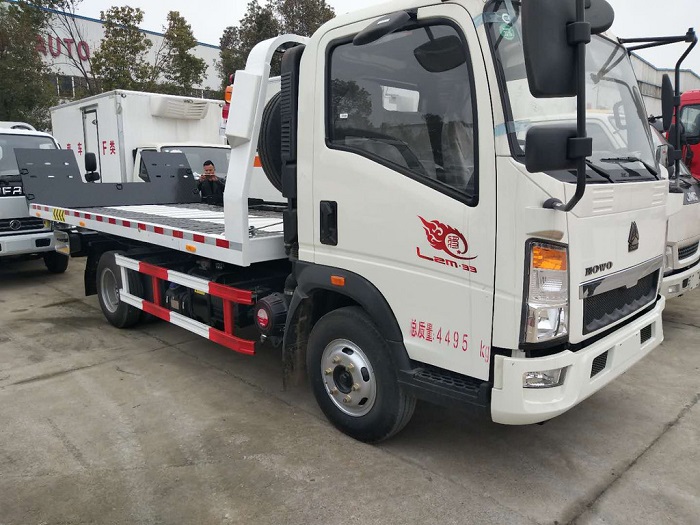

Products Show

Medium Duty Flatbed Tow Truck , 5 Tons 24 Hour Tow Truck High Performance
Medium Duty Flatbed Tow Truck , 5 Tons 24 Hour Tow Truck High Performance
Medium Duty Flatbed Tow Truck , 5 Tons 24 Hour Tow Truck High Performance
Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of Flatbed Tow Truck I can order from your company?


A: There are various sizes of Flatbed Tow Truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied Flatbed Tow Truck products to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
